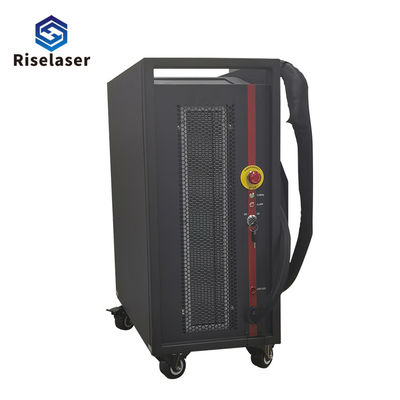

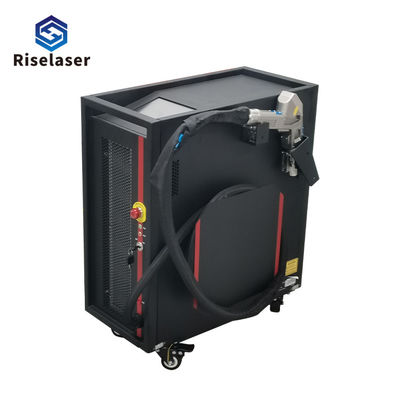

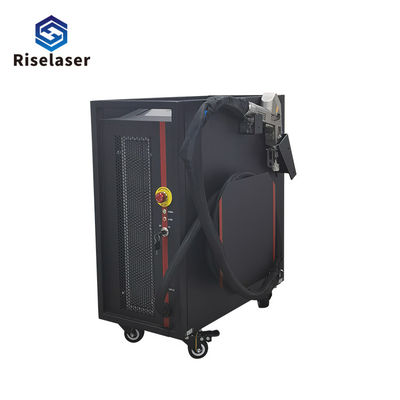

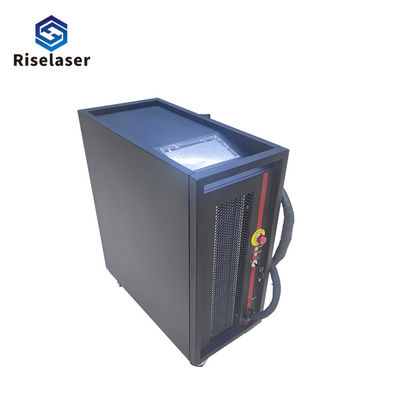

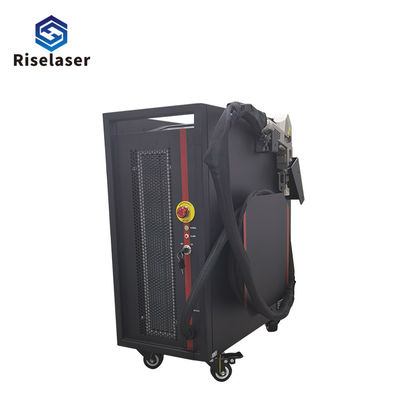

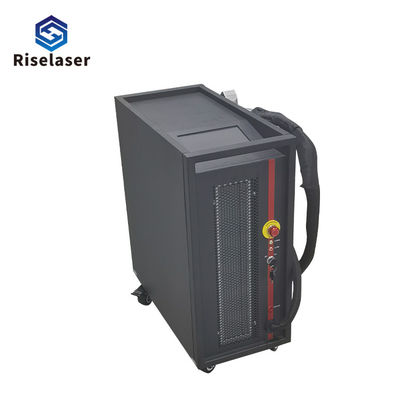

Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support

  • Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support
  • Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support
  • Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support
  • Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support
  • Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support
  • Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support
Lugar de origen Cantón, China
Nombre de la marca Riselaser
Cantidad de orden mínima 1
Precio $6,000-7,500

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Potencia de salida 2200W Dimensiones el 100*45*68cm
Diámetro del punto focal 0.5 mm Energía de pulso único HASTA 2200W
Longitud de onda 1070 Peso 42 kilogramos
Potencia del láser 1000W-2000W Profundidad de soldadura 3 mm
Método de enfriamiento Refrigeración por aire Potencia de entrada 220V monofásico, 24A
Frecuencia de oscilación 120Hz Ancho de oscilación 5 mm
Profundidad de acero inoxidable 5 mm Profundidad de cobre 2 mm
Longitud del cable 9 metros
Resaltar

3mm Welding Depth Handheld Laser Welding Machine

,

Raycus MAX IPG Laser Source Laser Spot Welding Machine

,

Online Support Fiber Laser Welding Machine
Deja un mensaje
Descripción de producto
Handheld Laser Welding Machine 1000/1500/2000W Air-cooling Laser Spot Welding Machine
Key Advantages
  • Self-developed and highly reliable pump source for ultra-long service life
Applications
  • Metal processing station
  • Construction and piping
  • Auto body application
  • Aerospace & transportation
  • Maintenance and repair
Technical Parameters
Pump Power Input power Wobble frequency and width Size Weight
2200W 220V single phase, 24A 120HZ, 5mm 500*530*260mm³ 42kg
Welding Material Capabilities
Welding material Stainless steels Galvanized sheet Carbon steel Aluminum Brass Copper
One-sided fusion depth 5mm 5mm 5mm 4mm 3mm 2mm
Double-sided dissolving depth 10mm 10mm 10mm 8mm 6mm 4mm
Performance Features
Power Stability Plenty of power reserve at rated power output
Powerful Performance Effective fusion depth 5mm for stainless steel, 2mm for copper
Intelligent Operation Fully intelligent and simple operating system, easy to set up and operate
Wobble Welding Wobble width up to 5mm, supports wide seam welding
Excellent welding seam Sufficient pumping power and precise energy control for stable laser beam quality and narrowed heat-affected zone
Operator Safety Multi-level sensors and interlocking safety devices
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 0
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 1
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 2
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 3
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 4
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 5
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 6
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 7
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 8
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 9
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 10
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 11
Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support 12
Frequently Asked Questions
1. How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2. How long is the cable?
Different laser sources have different options. For example, the normal cable length of Raycus and Max is about 9 meters.
3. How thick can 1500w-3000W be welded?
1-8mm thick metal materials.
4. Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, please contact us with your email address for more detailed information.
5. Can aluminum and galvanized steel be welded?
Yes, it can.
6. Packaging
All our machines are packed in wooden boxes.
7. Language interface
Supports language customization. You can also translate and insert to software.
